What is SS316 stainless steel?
SS316 is an austenitic stainless steel with about 17% chromium, 10% nickel and 2–3% molybdenum. The molybdenum gives it much better resistance to pitting from seawater, salt air and chlorides than 304, which makes it the standard choice for marine, coastal and chemical work in the Gulf.
316L is the low-carbon version (0.03% max). It is preferred for welded parts and is the most common form supplied today. Tell us which version your drawing calls for, and we'll quote to that exact grade.
We supply customers in Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah and across the GCC.

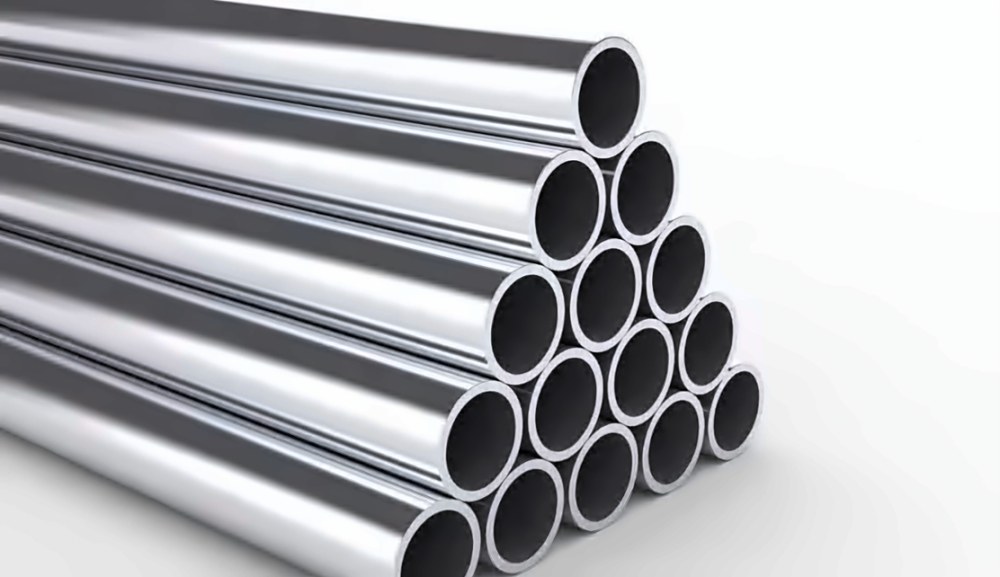

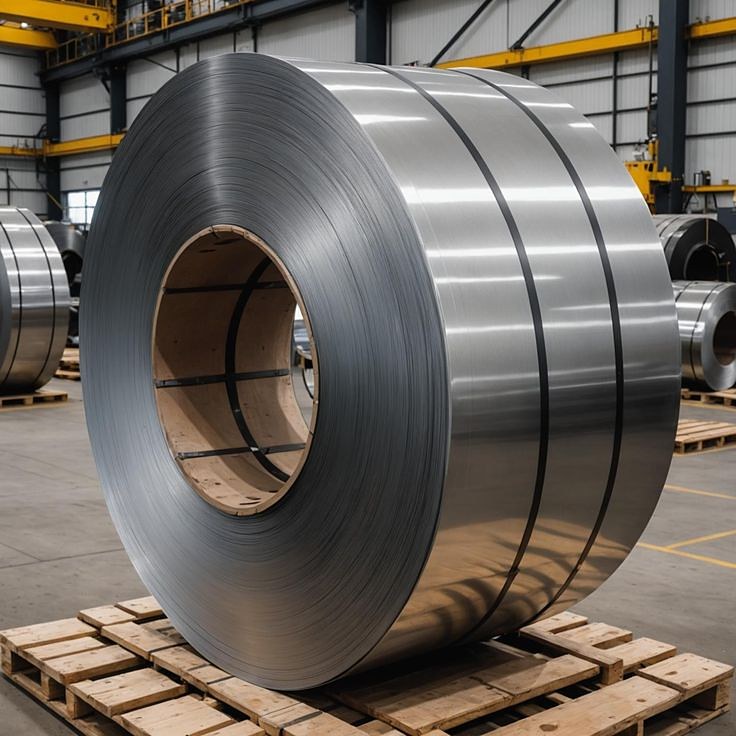

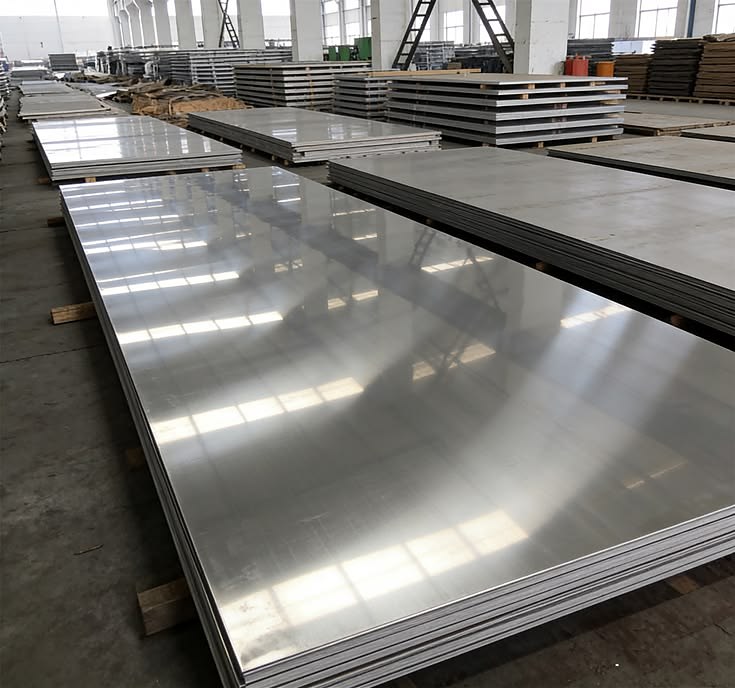

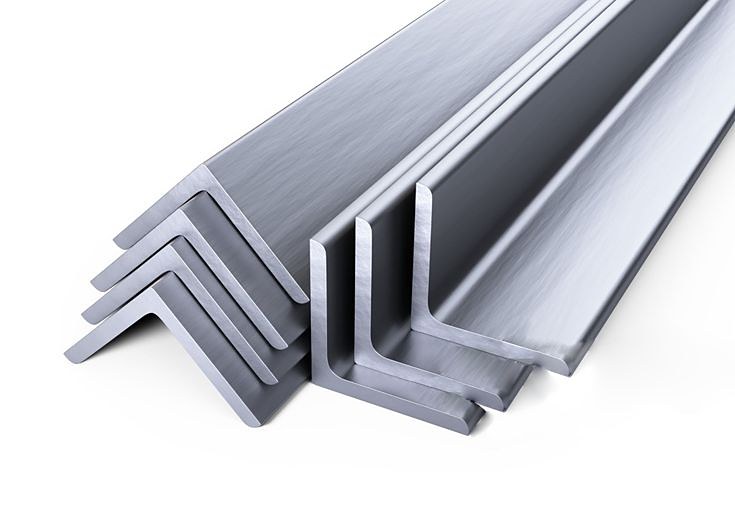

SS316 forms: bar, plate, sheet, coil & pipe
The same grade is supplied in long products, flat products, pipe and profiles. Sizes and cut lengths are confirmed when you request a quote.
SS316 / 316L chemical composition
Weight %, per ASTM A240. Single values are maximums.
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|---|
| 316 (S31600) | 0.08 | 2.00 | 0.75 | 0.045 | 0.030 | 16.0–18.0 | 10.0–14.0 | 2.00–3.00 |
| 316L (S31603) | 0.030 | 2.00 | 0.75 | 0.045 | 0.030 | 16.0–18.0 | 10.0–14.0 | 2.00–3.00 |
SS316 mechanical properties
Minimum values for 316, annealed condition, per ASTM A276. 316L is slightly lower (485 MPa tensile, 170 MPa yield).
| Property | Metric | Imperial |
|---|---|---|
| Tensile strength | 515 MPa | 75 ksi |
| Yield strength (0.2%) | 205 MPa | 30 ksi |
| Elongation in 2 in | 40 % | 40 % |
| Reduction of area | 50 % | 50 % |
SS316 equivalent grades (AISI, EN, JIS, UNS)
Nearest equivalents. Always check against the standard named on your drawing.
| System | 316 | 316L |
|---|---|---|
| UNS (USA) | S31600 | S31603 |
| AISI (USA) | 316 | 316L |
| EN / W.Nr. (Europe) | 1.4401 | 1.4404 |
| JIS (Japan) | SUS 316 | SUS 316L |
| GB (China) | 06Cr17Ni12Mo2 | 022Cr17Ni12Mo2 |
SS316 physical properties
| Property | Typical value |
|---|---|
| Density | 8.0 g/cm³ |
| Melting range | 1375–1400 °C |
| Max service, continuous | ≈ 925 °C |
| Max service, intermittent | ≈ 870 °C |
| Magnetic | No (annealed) |

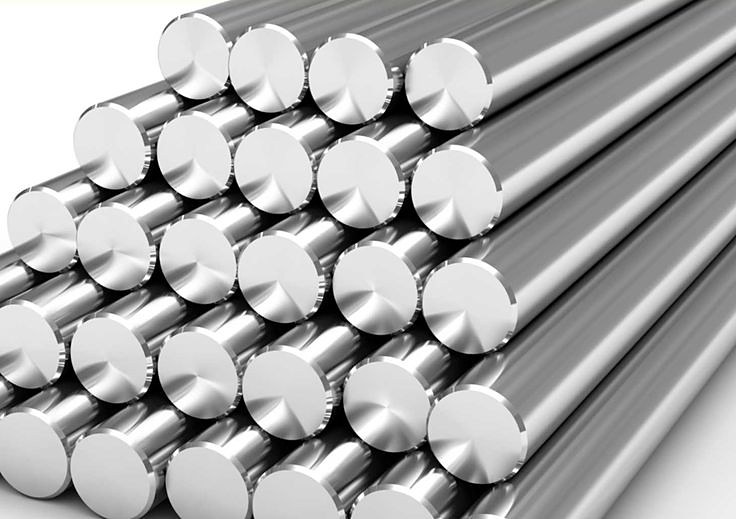

SS316 round bar weight chart
Theoretical weight per metre for common diameters, using a density of 8.0 g/cm³ (kg/m ≈ D² × 0.00628). Use it to estimate order weight from your cut list.
| Diameter | Weight (kg/m) | Diameter | Weight (kg/m) |
|---|---|---|---|
| 8 mm | 0.40 | 40 mm | 10.05 |
| 10 mm | 0.63 | 50 mm | 15.70 |
| 12 mm | 0.90 | 60 mm | 22.61 |
| 16 mm | 1.61 | 70 mm | 30.77 |
| 20 mm | 2.51 | 80 mm | 40.19 |
| 25 mm | 3.92 | 90 mm | 50.87 |
| 30 mm | 5.65 | 100 mm | 62.80 |
Actual weight varies slightly with tolerance and finish. Other sizes are available on request.
SS316 applications
- Marine and offshore
- Coastal buildings
- Chemical and petrochemical plants
- Pharmaceutical and food processing
- Water treatment
- Fasteners
How to order SS316 in the UAE
Grade, form, size, quantity and delivery location, by form or WhatsApp.
Price, lead time and documents, confirmed for your exact sizes.
Material is prepared and tested, with the mill test certificate shared before dispatch.
Delivered to your site in the UAE or GCC on the schedule confirmed in your order. Typical transit time is 25–35 days.
Related austenitic grades
Everyday and corrosion-resistant grades, each available as bar, sheet, plate, pipe and coil.
We supply 28 stainless steel grades. See all grades on our home page.
Frequently asked questions
What is the difference between SS316 and SS316L?
Both have the same chromium, nickel and molybdenum. 316L has lower carbon (0.03% max against 0.08%), so it resists corrosion better at weld zones and is the usual choice for welded parts. 316 is slightly stronger.
SS316 or SS304: which should I use?
316 contains 2–3% molybdenum, which gives much better resistance to seawater, salt air and chlorides. For marine, coastal and chemical use in the Gulf, 316 or 316L is the safer choice; 304 suits indoor and general use at lower cost.
Is SS316 magnetic?
No. SS316 is austenitic, so it is non-magnetic in the annealed condition. Cold working may make it very slightly magnetic.
What is the price of SS316 in the UAE?
The price depends on form, size, quantity and finish, and on the current nickel market. Send your size and quantity and we'll reply with a quotation, usually within 24 hours.
Do you provide a mill test certificate?
Yes. Material is supplied with a mill test certificate showing heat number, chemistry and mechanical results.
How long does delivery to the UAE take?
Your delivery date is confirmed in your order, and we deliver to that schedule. Typical transit time to the UAE is 25 to 35 days, depending on grade, size and quantity.
Do you supply other stainless steel grades?
Yes. We supply 28 grades, from 201 and 304 to 904L, Duplex 2205 and Super Duplex 2507, as bar, plate, sheet, coil, pipe, wire and profiles.
Can material be cut to length or size?
Yes. Mention the cut lengths or sizes you need in your enquiry and they will be included in the quotation.
