What is SS309S stainless steel?
SS309 is an austenitic stainless steel with about 23% chromium and 13% nickel. It resists oxidation and holds its strength at temperatures where 304 starts to scale, and it costs less than 310, which makes it a common choice for furnace and kiln parts.
309S is the low-carbon version (0.08% max). It welds more easily and is preferred for welded assemblies. 309 is also widely used for joining stainless steel to carbon steel. Tell us which version your drawing calls for, and we'll quote to that exact grade.
We supply customers in Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah and across the GCC.

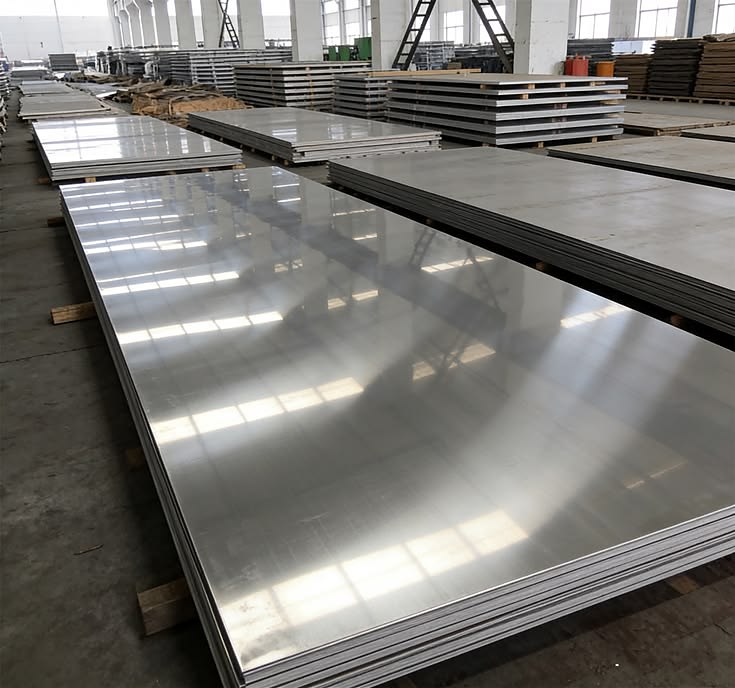

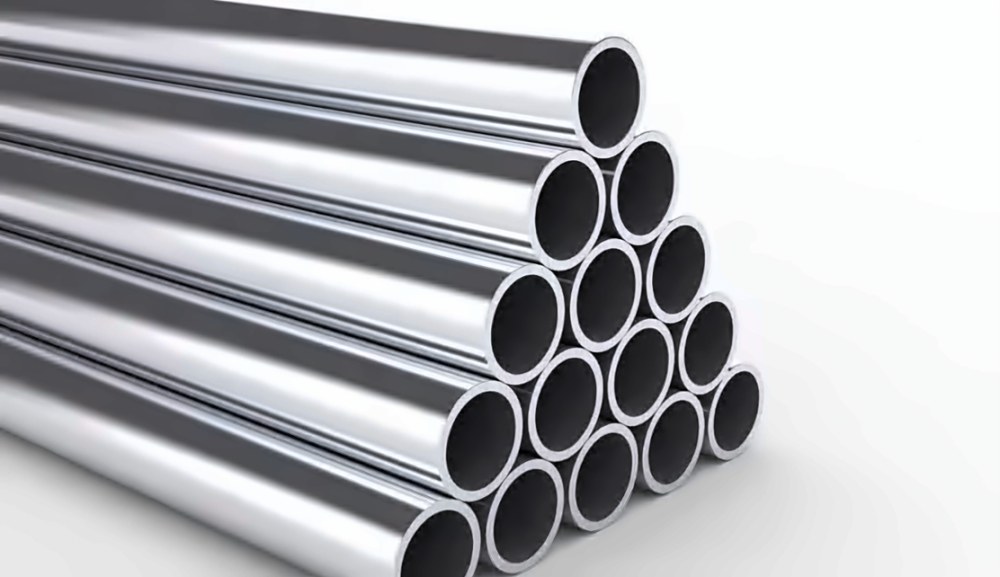

SS309S forms: bar, plate, sheet, coil & pipe
The same grade is supplied in long products, flat products, pipe and profiles. Sizes and cut lengths are confirmed when you request a quote.
SS309 / 309S chemical composition
Weight %, per ASTM A276 / A240. Single values are maximums.
| Grade | C | Mn | Si | P | S | Cr | Ni |
|---|---|---|---|---|---|---|---|
| 309 (S30900) | 0.20 | 2.00 | 1.00 | 0.045 | 0.030 | 22.0–24.0 | 12.0–15.0 |
| 309S (S30908) | 0.08 | 2.00 | 1.00 | 0.045 | 0.030 | 22.0–24.0 | 12.0–15.0 |
SS309S mechanical properties
Minimum values, annealed condition, per ASTM A276.
| Property | Metric | Imperial |
|---|---|---|
| Tensile strength | 515 MPa | 75 ksi |
| Yield strength (0.2%) | 205 MPa | 30 ksi |
| Elongation in 2 in | 40 % | 40 % |
| Reduction of area | 50 % | 50 % |
SS309S equivalent grades (AISI, EN, JIS, UNS)
Nearest equivalents. Always check against the standard named on your drawing.
| System | 309 | 309S |
|---|---|---|
| UNS (USA) | S30900 | S30908 |
| AISI (USA) | 309 | 309S |
| EN / W.Nr. (Europe) | 1.4828 (nearest) | 1.4833 |
| JIS (Japan) | SUS 309 | SUS 309S |
| GB (China) | 16Cr23Ni13 | 06Cr23Ni13 |
SS309S physical properties
| Property | Typical value |
|---|---|
| Density | 7.9 g/cm³ |
| Melting range | 1400–1450 °C |
| Max service, continuous | ≈ 1095 °C |
| Max service, intermittent | ≈ 980 °C |
| Magnetic | No (annealed) |
SS309S round bar weight chart
Theoretical weight per metre for common diameters, using a density of 7.9 g/cm³ (kg/m ≈ D² × 0.00623). Use it to estimate order weight from your cut list.
| Diameter | Weight (kg/m) | Diameter | Weight (kg/m) |
|---|---|---|---|
| 8 mm | 0.40 | 40 mm | 9.97 |
| 10 mm | 0.62 | 50 mm | 15.58 |
| 12 mm | 0.90 | 60 mm | 22.43 |
| 16 mm | 1.59 | 70 mm | 30.53 |
| 20 mm | 2.49 | 80 mm | 39.87 |
| 25 mm | 3.89 | 90 mm | 50.46 |
| 30 mm | 5.61 | 100 mm | 62.30 |
Actual weight varies slightly with tolerance and finish. Other sizes are available on request.
SS309S applications
- Furnace parts, muffles and retorts
- Kiln liners and cement plant parts
- Heat exchangers and recuperators
- Boiler baffles and supports
- Oven and annealing box parts
- Burner and combustion parts
- Joining stainless to carbon steel
- Heat-treatment fixtures
How to order SS309S in the UAE
Grade, form, size, quantity and delivery location, by form or WhatsApp.
Price, lead time and documents, confirmed for your exact sizes.
Material is prepared and tested, with the mill test certificate shared before dispatch.
Delivered to your site in the UAE or GCC on the schedule confirmed in your order. Typical transit time is 25–35 days.
Related heat-resistant grades
Grades chosen for high-temperature work, each available as bar, sheet, plate, pipe and coil.
We supply 28 stainless steel grades. See all grades on our home page.
Frequently asked questions
What is the difference between SS309 and SS309S?
Both have the same chromium and nickel. 309S has lower carbon (0.08% max against 0.20%), so it is easier to weld and less prone to corrosion at weld zones. For most welded fabrication, 309S is the usual choice.
SS309S or SS310S: which should I use?
310S has more chromium and nickel, so it resists oxidation to about 1150 °C. 309S works to about 1095 °C in continuous service and costs less. If your parts run below that range, 309S is often the more economical choice.
What is the maximum temperature for SS309S?
About 1095 °C in continuous service and about 980 °C where heating and cooling cycles are frequent.
Is SS309S magnetic?
No. SS309S is austenitic, so it is non-magnetic in the annealed condition. Cold working may make it very slightly magnetic.
What is the price of SS309S in the UAE?
The price depends on form, size, quantity and finish, and on the current nickel market. Send your size and quantity and we'll reply with a quotation, usually within 24 hours.
Do you provide a mill test certificate?
Yes. Material is supplied with a mill test certificate showing heat number, chemistry and mechanical results.
How long does delivery to the UAE take?
Your delivery date is confirmed in your order, and we deliver to that schedule. Typical transit time to the UAE is 25 to 35 days, depending on grade, size and quantity.
Do you supply other stainless steel grades?
Yes. We supply 28 grades, from 201 and 304 to 904L, Duplex 2205 and Super Duplex 2507, as bar, plate, sheet, coil, pipe, wire and profiles.
Can material be cut to length or size?
Yes. Mention the cut lengths or sizes you need in your enquiry and they will be included in the quotation.
